50Kva Single Phase Pad Mounted Transformer Distribution Oil Immersed 22860V to 240V Residential
Single-phase padmount transformers designed to bring underground 1-phase power to homes, and commercial buildings from utility feeds. These units are perfect for urban public locations due to their tamper-proof and low profile design.
Main data
| Phase | Single Phase |
| Capacity | 50 |
| Transformer Feed Type | Radial Feed |
| Vector Group | II6 |
| Primary Voltage | 22860GrdY/13200 |
| Secondary Voltage | 240/120V (L-N-L) |
| Frequency | 60 Hz |
| Temperature Rise | 65°C |
| Cooling Class | KNAN; Self-Cooled |
| Efficiency Standard(s) | Meets DOE 2016 Standards, Meets ANSI/IEEE Standards |
| K-Factor Rating (Harmonic Mitigation) | K-1 (Standard) |
| Winding Material | Copper |
| Ambient Temperature Rating | 40°C |
| Sound Level | 48 dBA |
| Dimensions* | 35''-W x 42''-D x 30''-H |
| Weight* | 1200 lb |
| Efficiency | 99.11% |
| No Load Loss (in watts)* | +/- 167W |
| Load Loss (in watts)* | +/- 640W |

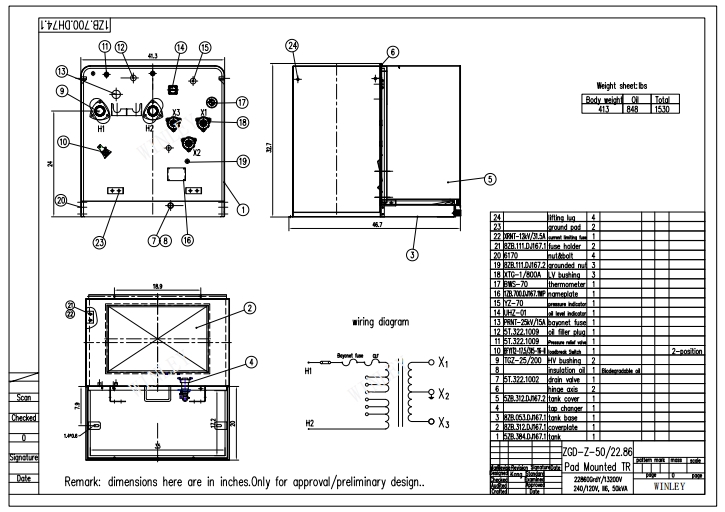

Drawing

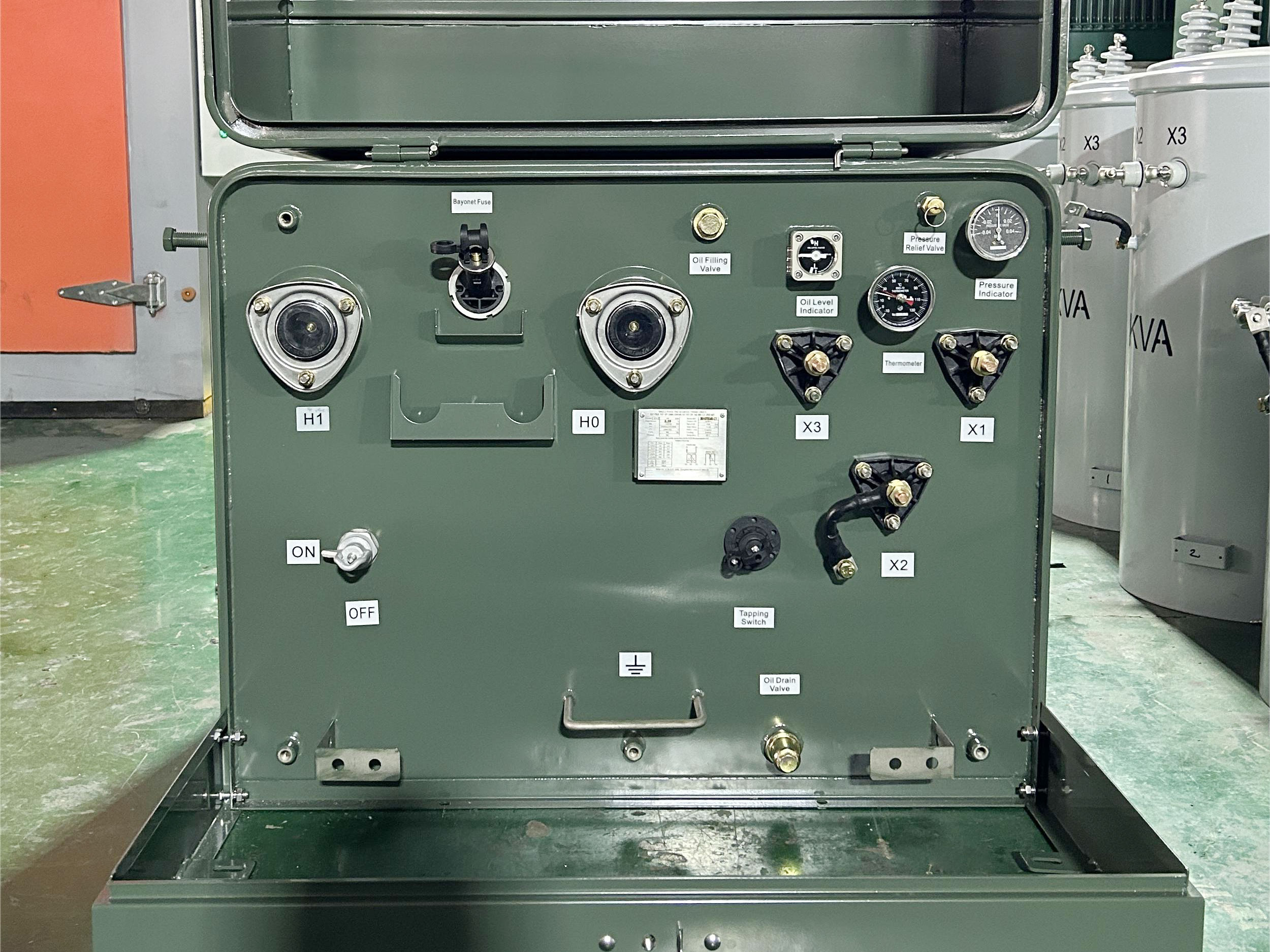

Standard specs
- Type II non-PCB mineral oil (ONAN)
- High-grade silicon-steel core
- Aluminum windings
- Pad-lockable door handle
- DOE 2016 efficiency
- Reinforced carbon steel tank
- Lifting lugs
- Pressure relief valve
- 65 degree C rise
- Bayonet fuse with drip shield
- Dead front well and insert HV bushings
- Paddle/spade or lug-connector type LV bushings
Optional specs
- Environmentally friendly, high fire-point FR3 oil (KNAN)
- Copper windings
- Stainless steel tank
- High voltage taps
- Dual voltage
- Backup CL Fuse (internal)
- On-Off High Voltage Switch
- Removable Stud Bushing Wells
Specification
| Single phase Pad mounted Transformer Specification |
| Rating | High voltage(kV) | No Load Loss | On load Loss | Height | Depth | Width | Oil Weight(kg) | Total Weight(kg) |
| (kVA) | (mm) | (mm) | (mm) |
| 15 kVA | 34.5/19.92
13.8/8
13.2/7.6
12.47/7.2
or others | 50 | 195 | 840 | 740 | 610 | 45 | 294 |
| 25 kVA | 80 | 290 | 840 | 740 | 610 | 68 | 362 |
| 37.5 kVA | 106 | 360 | 840 | 760 | 610 | 75 | 476 |
| 50 kVA | 135 | 500 | 840 | 810 | 610 | 93 | 553 |
| 75 kVA | 190 | 650 | 840 | 860 | 610 | 132 | 672 |
| 100 kVA | 280 | 1010 | 910 | 1200 | 965 | 230 | 714 |
| 167 kVA | 435 | 1530 | 1000 | 1200 | 965 | 265 | 913 |
| 250 kVA | 550 | 2230 | 1250 | 1300 | 1430 | 325 | 1106 |
Meets/Exceeds DOE 2016 Efficiency Ratings
- Complies with ANSI / IEEE #C57.12.00
- Complies with ANSI / IEEE #C57.12.25
- Complies with ANSI / IEEE C57 12.28
- Complies with ANSI / IEEE C57 12.38
- Complies with ANSI / IEEE C57.12.70
- Complies with ASTM D3487
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
