167Kva Single Phase Pad Mounted Transformer Residential Oil Filled 34.5KV Liquid Filled
Single phase pad mounted transformer is a low-profile,compartment-type transformer, which is suitable for mounting outdoors on pads without additional protective enclosures and meets the following standards: ANSI/IEEEC57.12.00, C57.12.20, C57.12.38, C57.12.90, CSA, etc.

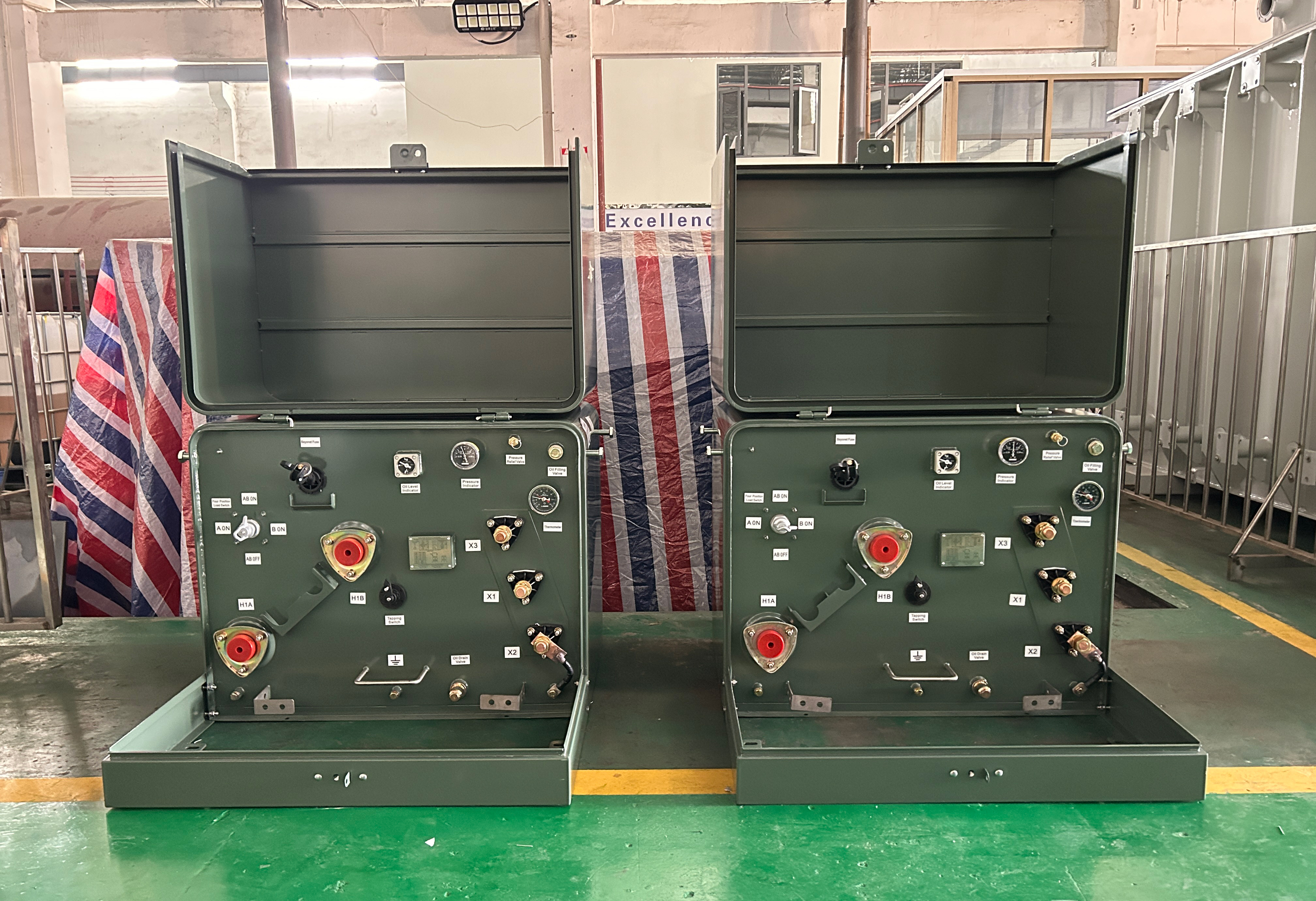

Product Structure
Main Data
| Transformer Type | Pad Mounted, Compartmental-Type |
| Phase | Single Phase |
| Transformer Feed Type | Loop Feed |
| Capacity | 167 |
| Primary Voltage | 13800GrdY/7968 |
| Primary BIL | 95 KV |
| Secondary Voltage | 240/120V (L-N-L) |
| Secondary Phasor | Dual Winding Single Phase |
| Secondary BIL | 30 KV |
| Frequency | 60 Hz |
| Temperature Rise | 65°C |
| Cooling Class | ONAN; Self-Cooled |
| Winding Material | Copper |
| Ambient Temperature Rating | 40°C |
| Sound Level | 55 dBA |
| Dimensions* | 40.1-W x 42.3-D x 33.2-H |
| Weight* | 2,100 lb |
| Efficiency | 99.10% |

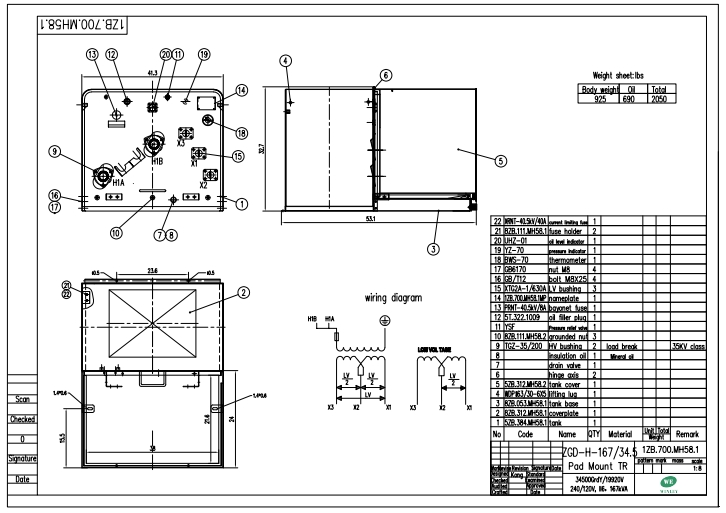

Drawing
Standard Features
- Pressure relief device
- Fluid fill and drain provisions
- Laser-engraved nameplate
- Floating lock pocket for easy alignment
- Decal bushing designations
- Welded domed tank cover
- Tamper strips of noncorrosive material
- Crowned tank
- Removable sill
- Hinged door with stainless steel hinge pins and barrels
- Ground strap from X2 to tank ground
- HV bushing wells for dead front elbow connectors
- High-voltage bushing wells - 200 A and low-voltage bushing
-
Factory Photos
Why choose us
- The single phase pad mounted transformers produced by WINLEY are safe, environmentally friendly and customizable, with a capacity of 10-333KVA and a voltage of up to 34.5KV.
- The products are designed according to multiple standards and meet or even exceed DOE 2016, IEEE, ANS, CSA, IEC, NEMA and other standards.
- The monthly delivery capacity is over 800 units, and fast delivery can be achieved within 4 weeks.
Specification
| Single phase Pad mounted Transformer Specification |
| Rating | High voltage(kV) | No Load Loss | On load Loss | Height | Depth | Width | Oil Weight(kg) | Total Weight(kg) |
| (kVA) | (mm) | (mm) | (mm) |
| 15 kVA | 34.5/19.92
13.8/8
13.2/7.6
12.47/7.2
or others | 50 | 195 | 840 | 740 | 610 | 45 | 294 |
| 25 kVA | 80 | 290 | 840 | 740 | 610 | 68 | 362 |
| 37.5 kVA | 106 | 360 | 840 | 760 | 610 | 75 | 476 |
| 50 kVA | 135 | 500 | 840 | 810 | 610 | 93 | 553 |
| 75 kVA | 190 | 650 | 840 | 860 | 610 | 132 | 672 |
| 100 kVA | 280 | 1010 | 910 | 1200 | 965 | 230 | 714 |
| 167 kVA | 435 | 1530 | 1000 | 1200 | 965 | 265 | 913 |
| 250 kVA | 550 | 2230 | 1250 | 1300 | 1430 | 325 | 1106 |
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
