ANSI IEEE Standard 25kva Single Phase Pad Mounted Transformer 4160GrdY/2400 Customized For Residential
Why choose us
1. The single phase pad mounted transformers produced by WINLEY are safe, environmentally friendly and customizable, with a capacity of 10-333KVA and a voltage of up to 34.5KV.
2. The products are designed according to multiple standards and meet or even exceed DOE 2016, IEEE, ANS, CSA, IEC, NEMA and other standards.
3. The monthly delivery capacity is over 800 units, and fast delivery can be achieved within 4 weeks.
Main data
| Transformer Type | Pad Mounted, Compartmental-Type II |
| Transformer Feed Type | Loop Feed |
| Phase | Single Phase |
| Capacity | 25 KVA |
| Vector Group | II6 |
| Primary Voltage | 4160GrdY/2400 |
| Secondary Voltage | 240/120V (L-N-L) |
| Frequency | 60 Hz |
| Temperature Rise | 65°C |
| Insulation Rating | Class E Insulation - 120°C, 248°F |
| Cooling Class | ONAN; Self-Cooled |
| Efficiency Standard(s) | Meets DOE 2016 Standards, Meets ANSI/IEEE Standards |
| K-Factor Rating (Harmonic Mitigation) | K-1 (Standard) |
| Winding Material | Copper |
| Ambient Temperature Rating | 40°C |
| Sound Level | 48 dBA |
Standard Features
- HV Bushings*2
- LV Bushings*3
- Tap Changer*1
- Bayonet Fuse*1
- ELSP Fuse*1ELSP
- Oil Level Gauge*1
- Pressure Relief Valve*1
- Thermomter*1
- Fill Plug*1
- Drain Valve*1
- Ground Strap Copper*1
- Grounding Spade Terminal*2

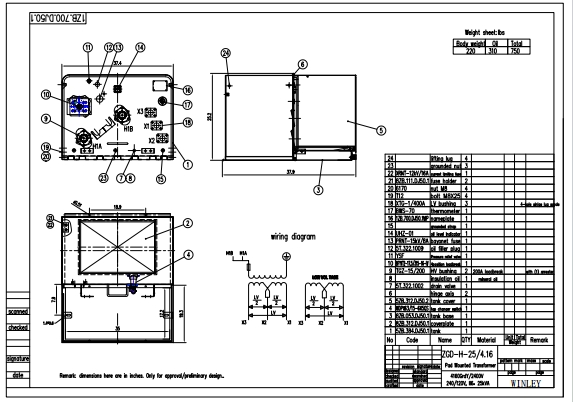

Drawing
Performance Characteristic
1)Single phase pad mounted transformers are placed inside a cabinet with doors and locks, usuallylocated outdoors.
2)These transformers are manulactured with ratings from 15-250 kVA.
3)Al of these distribution transformers are oil-insulated, sef-cooled,available in loop or radial feed, and are dead-front
4)These transformers come in two basic configurations radia and loop feed,which are selectied based on the type of circuit on which the transformers wil be insalled.
5)ANSI single-phase pad-mounted transformers come equipped with a clamshell cabinet for ease of opening and uninhibited access to connections. The versatility of the design allows for various protective and switching configurations.
Specification
| Single phase Pad mounted Transformer Specification |
| Rating | High voltage(kV) | No Load Loss | On load Loss | Height | Depth | Width | Oil Weight(kg) | Total Weight(kg) |
| (kVA) | (mm) | (mm) | (mm) |
| 15 kVA | 34.5/19.92
13.8/8
13.2/7.6
12.47/7.2
or others | 50 | 195 | 840 | 740 | 610 | 45 | 294 |
| 25 kVA | 80 | 290 | 840 | 740 | 610 | 68 | 362 |
| 37.5 kVA | 106 | 360 | 840 | 760 | 610 | 75 | 476 |
| 50 kVA | 135 | 500 | 840 | 810 | 610 | 93 | 553 |
| 75 kVA | 190 | 650 | 840 | 860 | 610 | 132 | 672 |
| 100 kVA | 280 | 1010 | 910 | 1200 | 965 | 230 | 714 |
| 167 kVA | 435 | 1530 | 1000 | 1200 | 965 | 265 | 913 |
| 250 kVA | 550 | 2230 | 1250 | 1300 | 1430 | 325 | 1106
|

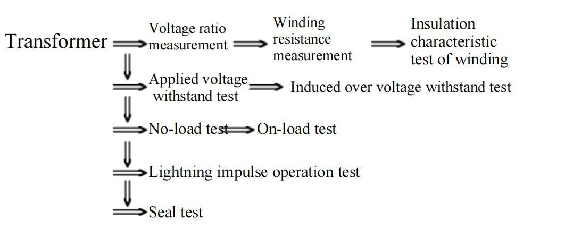

Testing

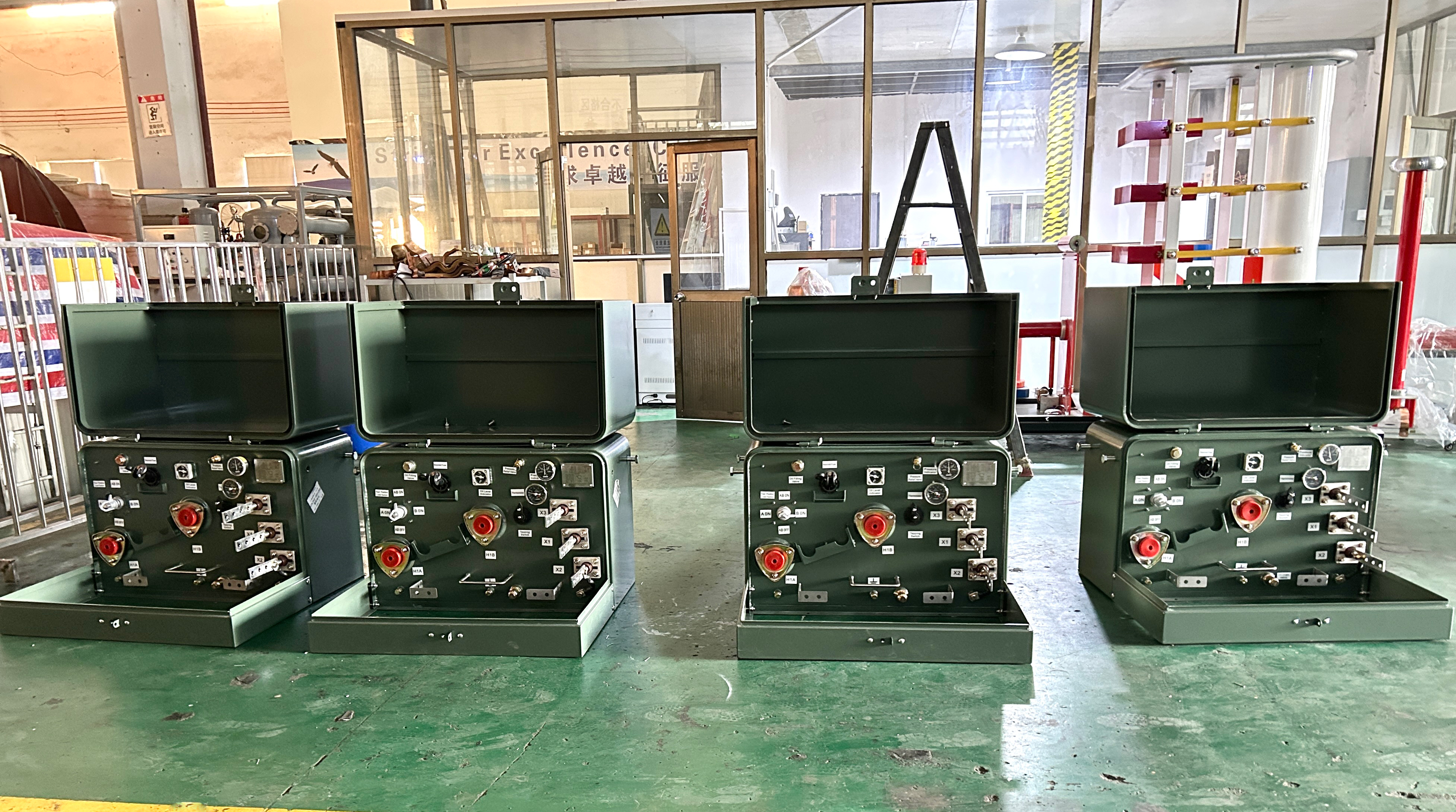

Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
