500kva Three Phase Pad Mounted Transformer Power 12000V To 208Y 304 SS NEMA 3R Radial Feed
WINLEY ELECTRIC specialize in the production of three phase pad mounted transformers. Our products have obtained UL/cUL certification comply with ANSI, IEEE, DOE, CSA and other standards. The rated power is usually 75kva to 5500kVA, and the voltage can reach 34.5 kV. service.
structure
Main data
| Phase | Three Phase |
| Capacity | 500 kVA |
| Primary Voltage | 12000V Delta |
| Secondary Voltage | 208Y/120 Wye-N |
| Frequency | 60 Hz |
| Temperature Rise | 65°C |
| Efficiency | Meets DOE 2016 Standard |
| Cooling Class | ONAN |
| Front | Dead-Front |
| Feed | Radial |
| Winding Material | Copper |
| Cabinet Material | 304 Stainless Steel |
| Enclosure Rating | NEMA 3R Weatherproof |
Performance
1.pad-mounted transformers are made in power ratings up to 10000 kVA.High voltage up to 34.5 kV.
2.pad mounted transformer is designde and tested in accordance with standards including CSA, IEEE c.57, and DOE as applicable.
3.The pad mounted transformers are oil-filled and have a tamper-resistant design. The transformer is divided into two parts, the front cabin and the rear cabin.
Specification
| Three Phase Pad Mounted Transformer |
| Rated Power (KVA) | High Voltage (KV) | Low Voltage (V) | Loss (W) |
| No-load Loss (W) | On-load Loss (W) |
| 75KVA | 24.94/14.4kV
12.47/7.2kV
34.5KV/
19.92KV/
13.8KV/
13.2KV/
or others | 120/240V
480Y/
277V
600Y/
347V | 180 | 1250 |
| 112.5KVA | 200 | 1500 |
| 150KVA | 280 | 2200 |
| 225KVA | 400 | 3050 |
| 300KVA | 480 | 3650 |
| 500KVA | 680 | 5100 |
| 750KVA | 980 | 7500 |
| 1000KVA | 1150 | 10300 |
| 1500KVA | 1640 | 14500 |
| 2000KVA | 2160 | 20645 |
| 2500KVA | 2680 | 23786 |
| 3000KVA | 3300 | 25300 |
| 3750KVA | 4125 | 27875 |
| 5000KVA | 5200 | 30000 |

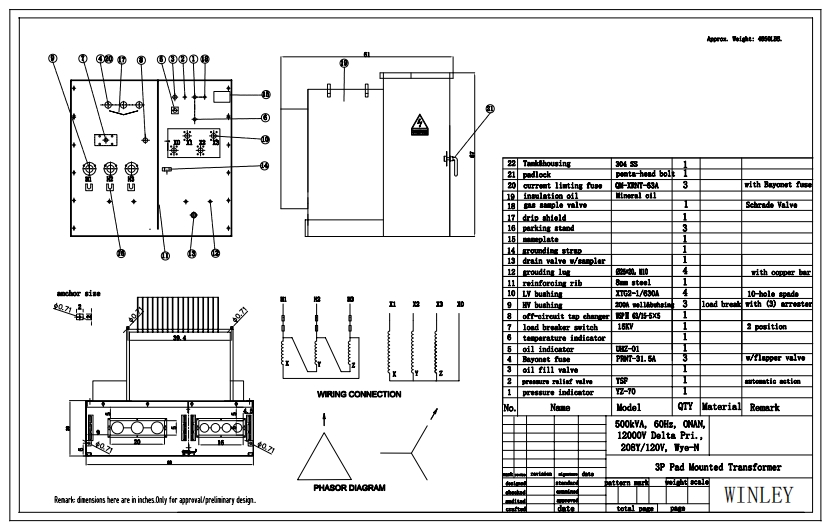

Technical drawings
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
