3 Phase Resin Cast Dry Type Transformer 100 kva - 2500 kva Class H 10KV to 0.4KV
Epoxy resin dry-type transformers Moisture-proof and corrosion-resistant ability ,especially for work in extreme environmental conditions.It is suitable for densely populated places and places with high environmental protection requirements, such as commercial centers, hospitals, schools, etc. Due to their lower fire risk and environmental protection characteristics, dry-type transformers have great advantages in these scenarios.
product structure
Performance Characteristic
* Simple maintenance: seldom need any maintenance.
* They are pollution-free
* They are used in the areas of contaminated and damped
* They are easier to Install.
* They have long servie life because of the dielectric heating & low thermal
* Protects the property & people
* For short circuit currents, they have high resistance
* Performance is excellent

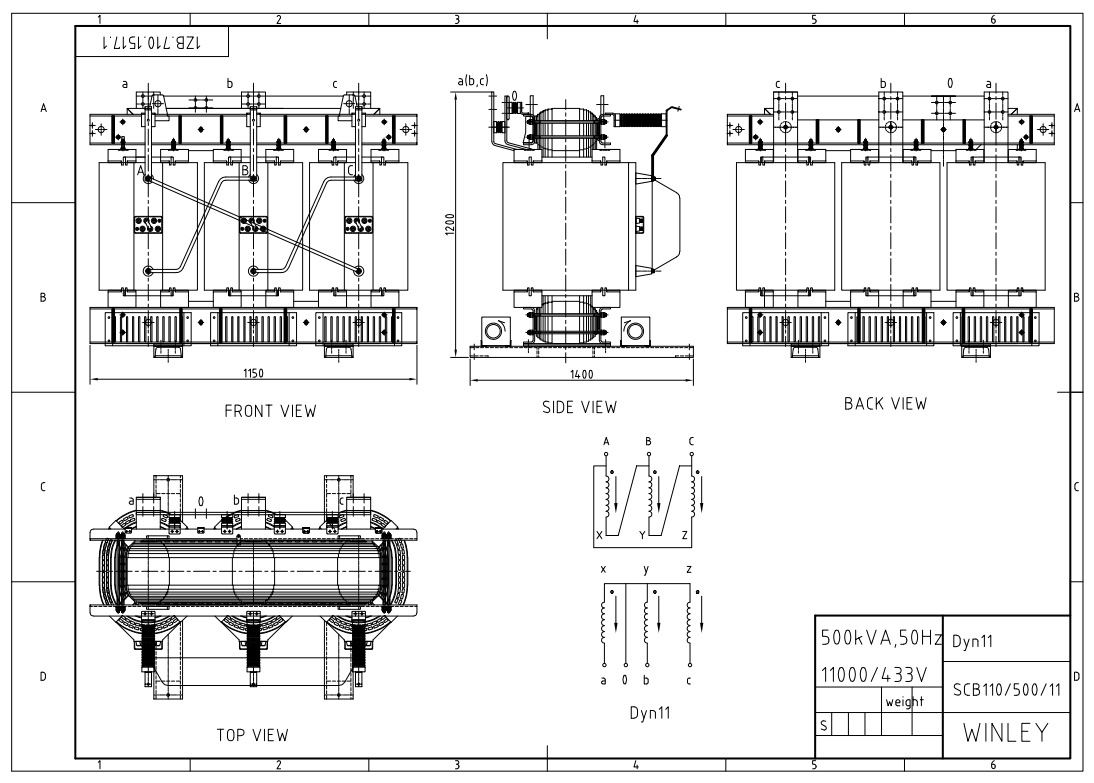

Drawing
Specification
| Rated capacity | High Voltage | Low | Connection Symbol | No-Load Loss | On-Load Loss | No Load Current | Weight | Short Circuit Impendence |
| (KVA) | (KV) | Voltage | (W) | (W) | (%) | (KG) | (%) |
| (KV) | | | | | |
| 10 | 6 | 0.4 | Dyn11 | 0.15 | 0.325 | 4.1 | 130 | 4 |
| 30 | 6.3 | Yyn0 | 0.215 | 0.75 | 3.2 | 260 |
| 50 | 10 | | 0.305 | 1.055 | 2.8 | 315 |
| 80 | 10.5 | | 0.415 | 1.46 | 2.6 | 470 |
| 100 | 11 | | 0.45 | 1.665 | 2.4 | 520 |
| 125 | | | 0.53 | 1.955 | 2.2 | 585 |
| 160 | | | 0.61 | 2.25 | 2.2 | 670 |
| 200 | | | 0.7 | 2.675 | 2 | 790 |
| 250 | | | 0.81 | 2.915 | 2 | 920 |
| 315 | | | 0.99 | 3.67 | 1.8 | 1085 |
| 400 | | | 1.1 | 4.22 | 1.8 | 1320 |
| 500 | | | 1.305 | 5.165 | 1.8 | 1520 |
| 630 | | | 1.46 | 6.31 | 1.6 | 1820 | 6 |
| 800 | | | 1.71 | 7.36 | 1.6 | 2105 |
| 1000 | | | 1.99 | 8.6 | 1.4 | 2550 |
| 1250 | | | 2.35 | 10.26 | 1.4 | 2900 |
| 1600 | | | 2.755 | 12.42 | 1.4 | 3490 |
| 2000 | | | 3.735 | 15.3 | 1.2 | 4220 |
| 2500 | | | 4.5 | 19.53 | 1.2 | 4955 |
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
