5000KVA Three Phase Cast Resin Transformer Dry Type 11KV To 0.4KV

Name: 5000KVA Three Phase Cast Resin Transformer Dry Type 11KV To 04KV
Brand: WINLEY
Price: 5000 USD

5000KVA Three Phase Cast Resin Transformer Dry Type 11KV To 0.4KV Manufactures

Brand Name : WINLEY

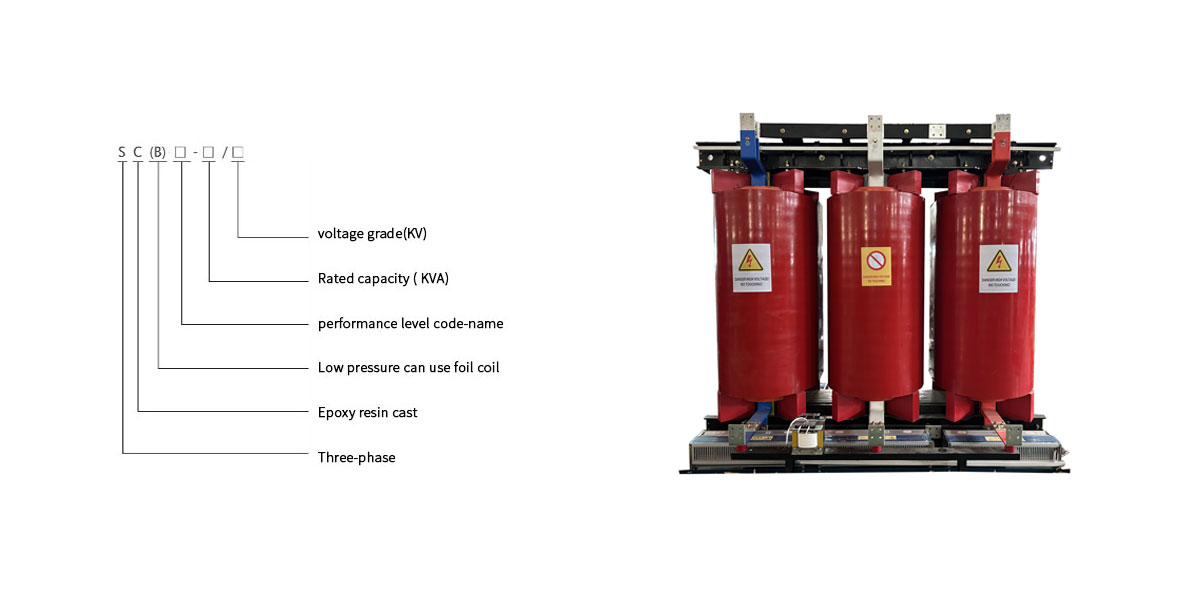

Model Number : SCB10-5000/11

Certification : CE,ISO

Place of Origin : CHINA

MOQ : 1unit

Price : $5000-$100000

Payment Terms : T/T

Supply Ability : 1000set/month

Delivery Time : 30days

Packaging Details : Plywood case

Type : Dry Type Cast Resin

Insulation class : F

Cooling method : AN/AF

Impedance : 8%

Frequency : 50Hz/60Hz

Winding material : Copper/Aluminum

Load Loss : 45000

No-load Loss : 8000

Contact Now

5000KVA Three Phase cast resin Transformer Dry Type 11KV To 0.4KV

Specification

Rated capacity	High Voltage	Low	Connection Symbol	No-Load Loss	On-Load Loss	No Load Current	Weight	Short Circuit Impendence
(KVA)	(KV)	Voltage		(W)	(W)	(%)	(KG)	(%)
		(KV)
10	6	0.4	Dyn11	0.15	0.325	4.1	130	4
30	6.3		Yyn0	0.215	0.75	3.2	260
50	10			0.305	1.055	2.8	315
80	10.5			0.415	1.46	2.6	470
100	11			0.45	1.665	2.4	520
125				0.53	1.955	2.2	585
160				0.61	2.25	2.2	670
200				0.7	2.675	2	790
250				0.81	2.915	2	920
315				0.99	3.67	1.8	1085
400				1.1	4.22	1.8	1320
500				1.305	5.165	1.8	1520
630				1.46	6.31	1.6	1820	6
800				1.71	7.36	1.6	2105
1000				1.99	8.6	1.4	2550
1250				2.35	10.26	1.4	2900
1600				2.755	12.42	1.4	3490
2000				3.735	15.3	1.2	4220
2500				4.5	19.53	1.2	4955

5000KVA Three Phase Cast Resin Transformer Dry Type 11KV To 0.4KV

Performance Characteristic

1)Moisture-proof and corrosion-resistant ability , and it can run normally at 100%humidity,especially for work in extreme environmental conditions.
2)Lost loss, small local discharge, small noise, and strong heat dissipation capacity, can run 150%of the rated load operation.
3)High the whole mechanical strength of the cast coil withstand sudden short -circuit capability.
4)Safe, fire prevention, no pollution, can be installed directly in the load center.
5)Simple maintenance and installation, low comprehensive operating costs.

Production process

5000KVA Three Phase Cast Resin Transformer Dry Type 11KV To 0.4KV

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
