1600KA 20KV Cast Resin Transformer 2x2.5% Tapping Low Losses 60Hz

Name: 1600KA 20KV Cast Resin Transformer 2x25 Tapping Low Losses 60Hz
Brand: WINLEY
Price: 500 USD

1600KA 20KV Cast Resin Transformer 2x2.5% Tapping Low Losses 60Hz Manufactures

Brand Name : WINLEY

Model Number : 1600KVA

Certification : ISO,CE

Place of Origin : CHINA

MOQ : 1unit

Price : $500~$60000/Unit

Payment Terms : T/T

Supply Ability : 1000units/month

Delivery Time : 10-15days

Packaging Details : Plywood case

Rated Voltage : 20KV

Tapping : ±2x2.5%

Low voltage : Copper foil

Type : Dry type power transformer

Losses : Low losses

Frequency : 60Hz

Insulation : F class Epoxy resin

Cooling : AN/AF

Contact Now

1600KA 20KV Cast Resin Transformer 2x2.5% Tapping Low Losses 60Hz

Features

SCBH15 amorphous alloy Dry Type transformer is our mature product. Magnetic core is made from high class amorphous alloy steel. LV and HV winding is casted by epoxy resin under vacuum condition and then cure under high temperature. Our transformer is with high mechanical strength and excellent heat radiation.

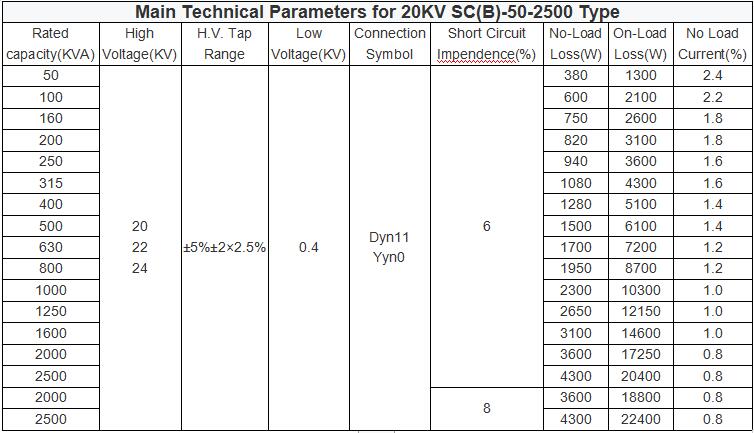

Specification

1600KA 20KV Cast Resin Transformer 2x2.5% Tapping Low Losses 60Hz

FAQ

Q: How do transformers been shipped?

A: Transformers always been delivered by ship,train or truck for oversea.

Q: Can your product be customerized?

A: Considering differences in voltage, frequency and other speciality of transformer product in different countries and regions,our product can be customerized according to your requirements.

Q: Do you offer guarantee for the products?

A: Yes. We offer at least two years guarantee for all of our transformers.

Q: Do you accept FAT(Factory Acceptance Test)?

A: Yes. It’s available. We are responsible for each set transformer’s testing.

Q: Do you assign engineer for after-sale service?

A: Yes. For our products,we all show after-sale guide installation adn question inquiry.
